220 kg substrate batch mixer
The mixer that produced every block of substrate we grew on. Vertical paddle mixer for sawdust, straw, grain and feed. Mixes a 200 kg batch in minutes, doses its own water, and bags out through pneumatic gates while you hold the bag.
Why this one
Real batch size
220 kg hopper. We ran 200 kg batches of material and it never laboured.
Hands-free water

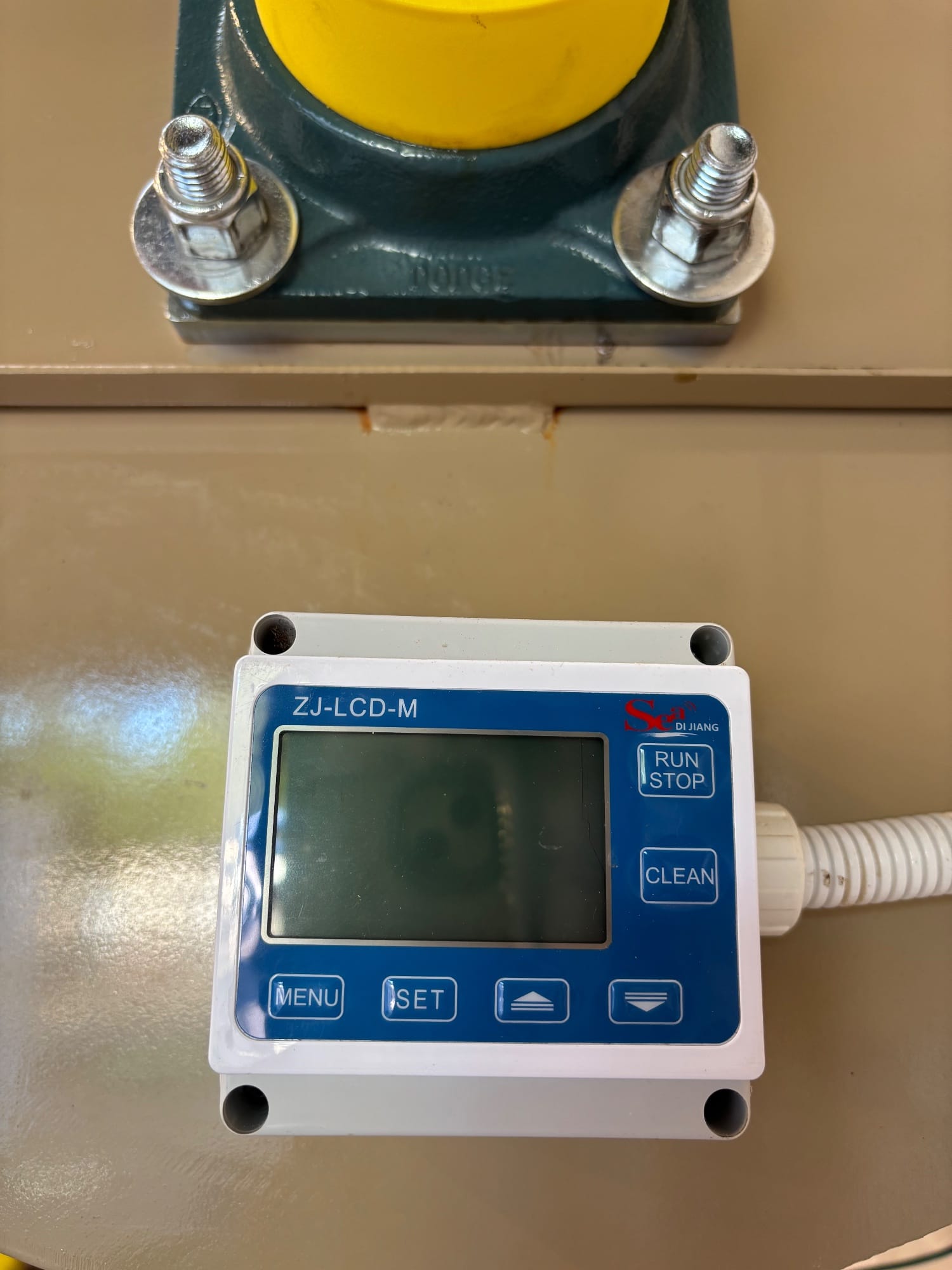

Set the litres on the flow meter and it stops itself. Same moisture every batch, no buckets.
Fast, clean bagging

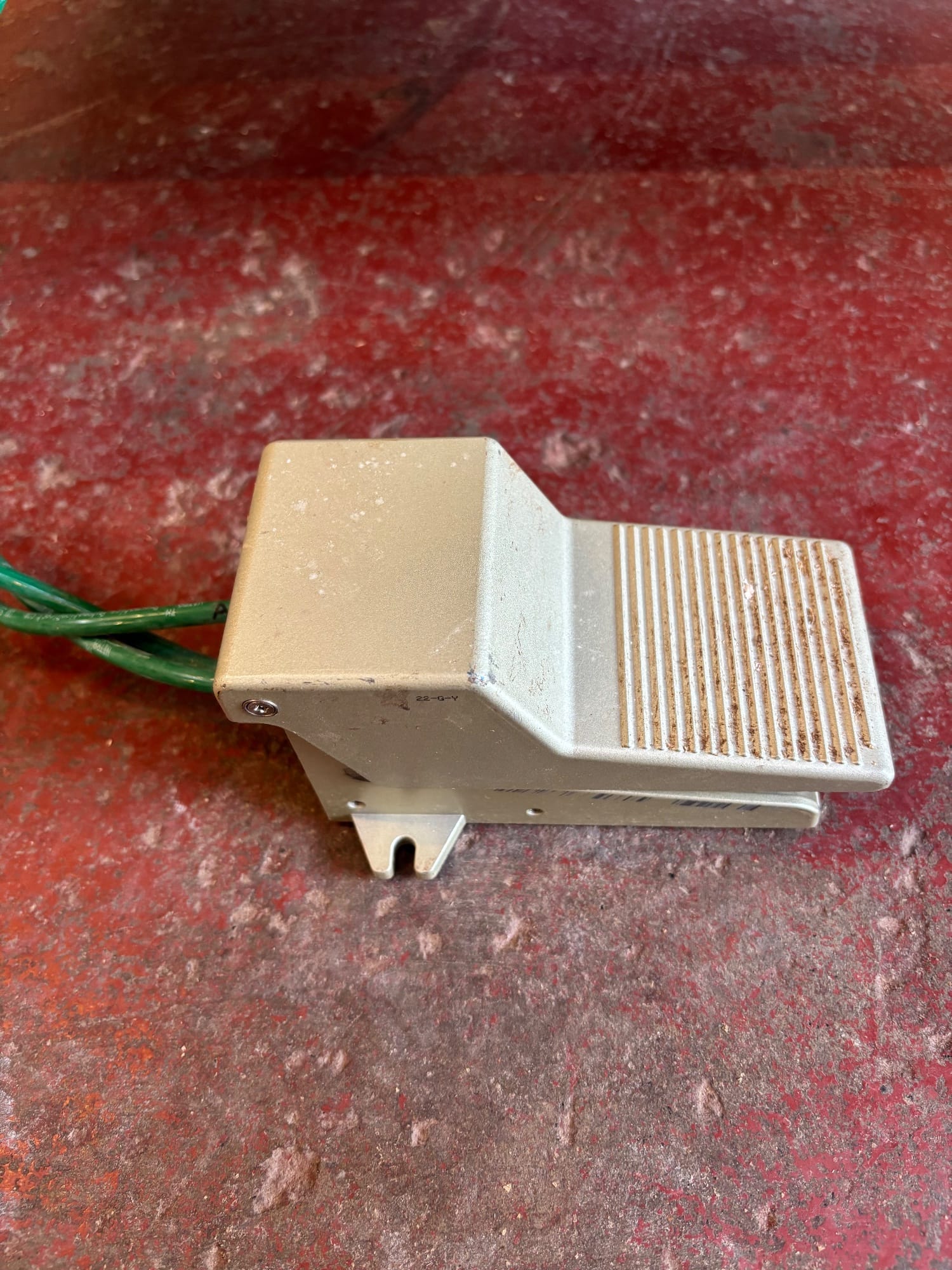

Two pneumatic sliding gates on a foot pedal leave both hands free for the bag.
Properly wired

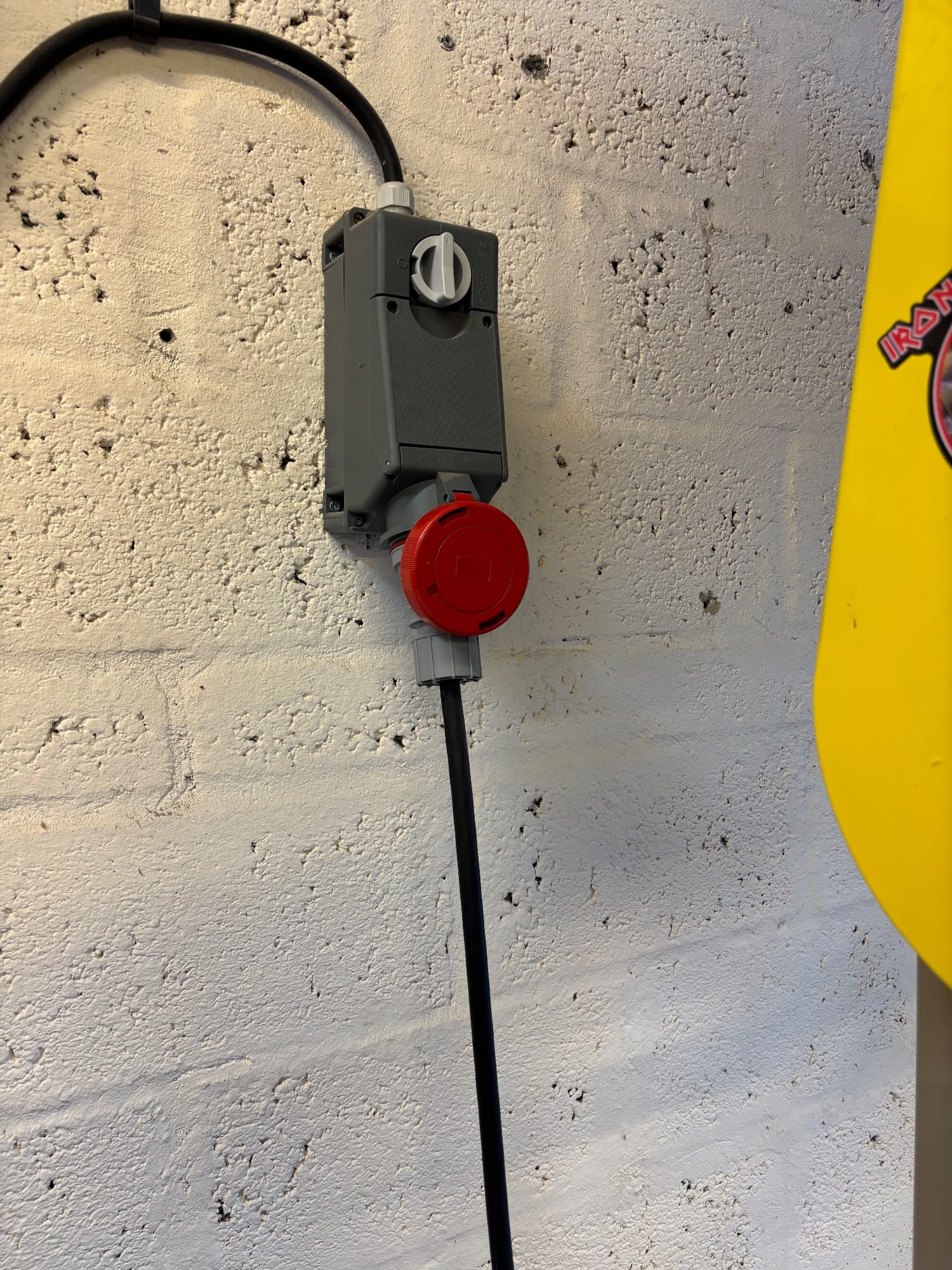

Schneider enclosure, lockable isolator, 3-phase CEE inlet. An electrician connects it in an hour.
Specification
- Type
- Vertical paddle batch mixer
- Capacity
- 220 kg per batch (200 kg recommended working load)
- Drive

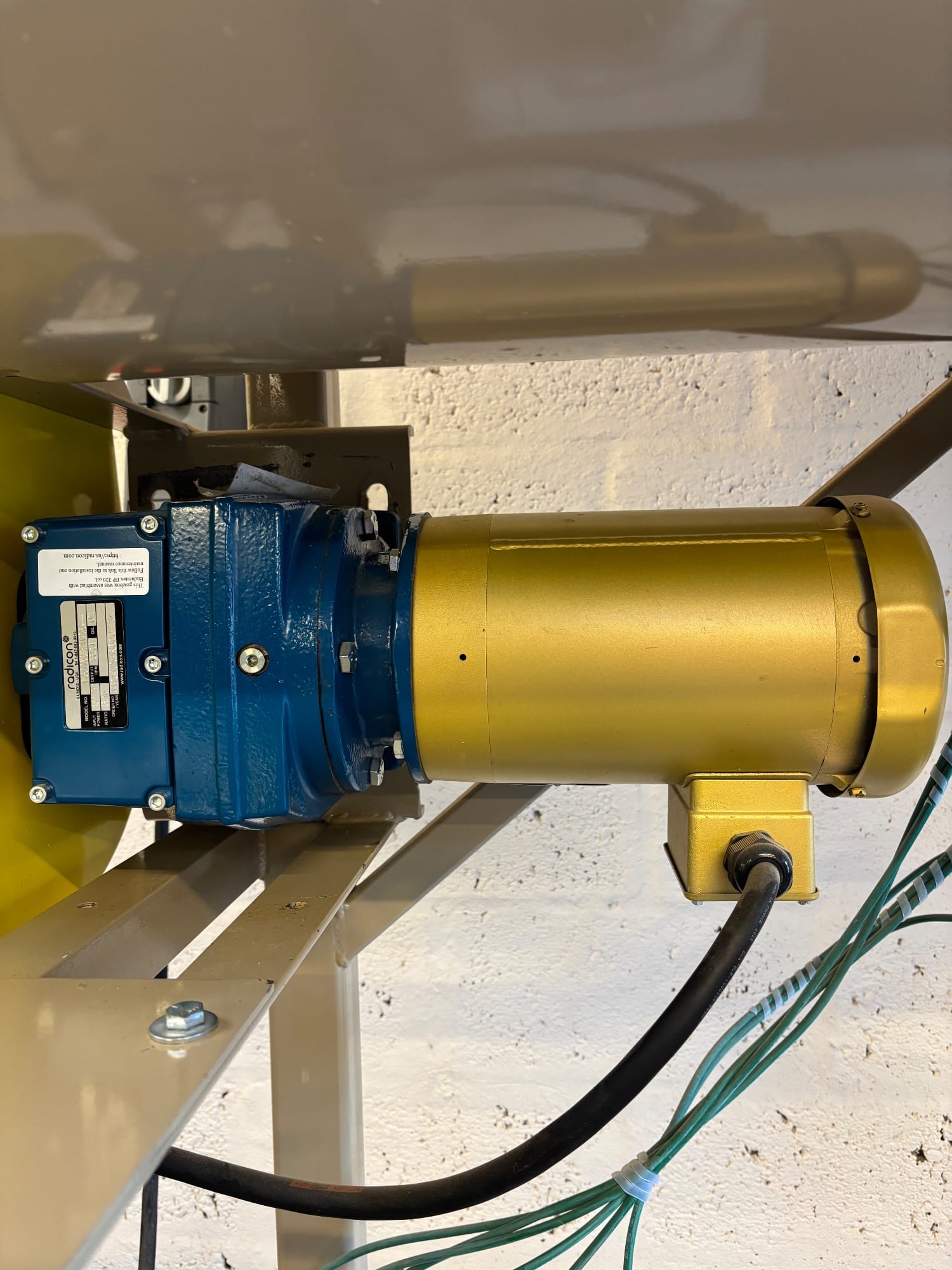

- 3-phase motor with Radicon worm gearbox
- Controls

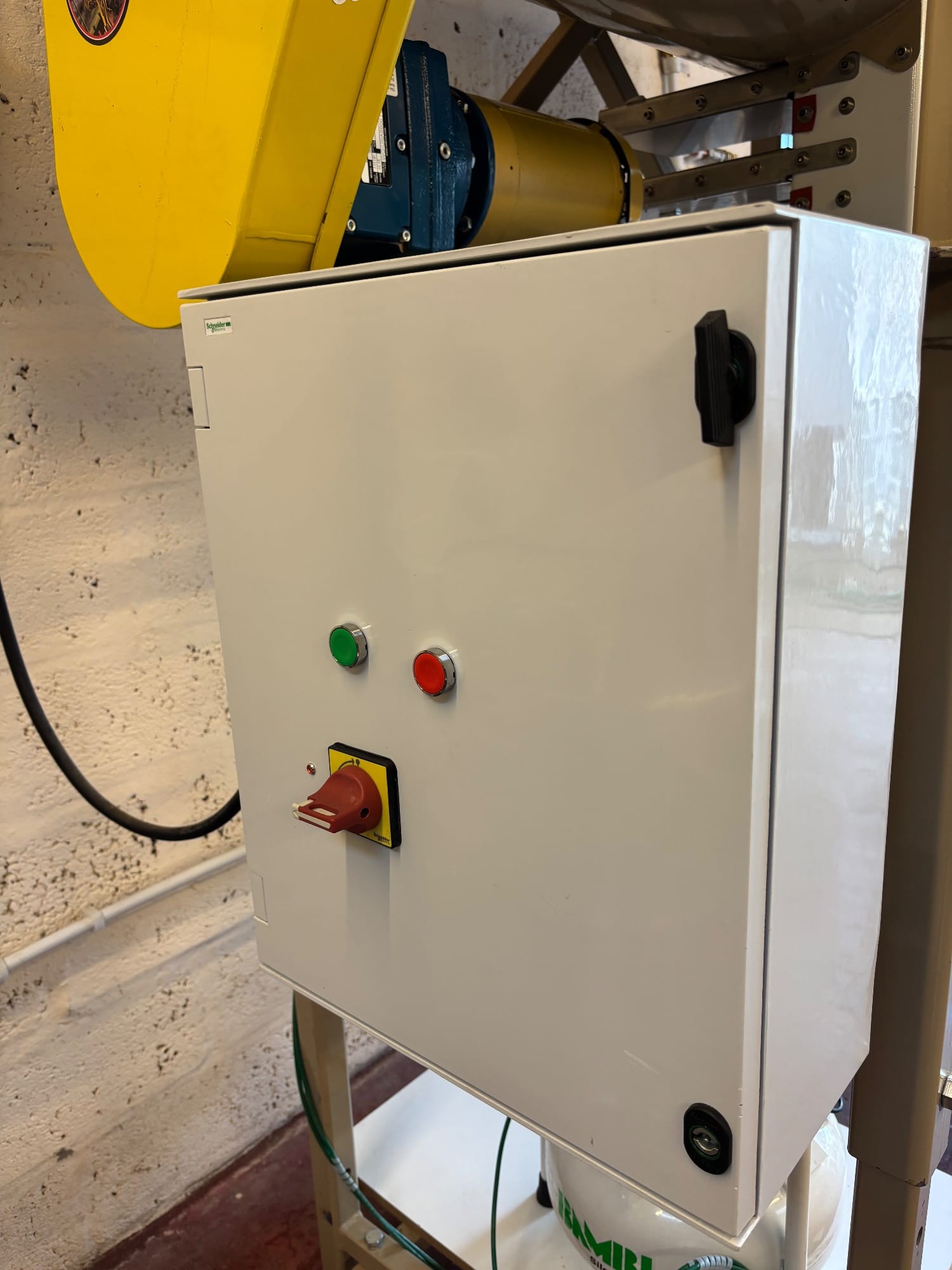

- Schneider enclosure, start/stop, rotary isolator, 3-phase CEE inlet
- Discharge
- Two pneumatic sliding gates, foot-pedal operated
- Air supply
- Standard workshop compressor, push-fit line (compressor not included)
- Water dosing

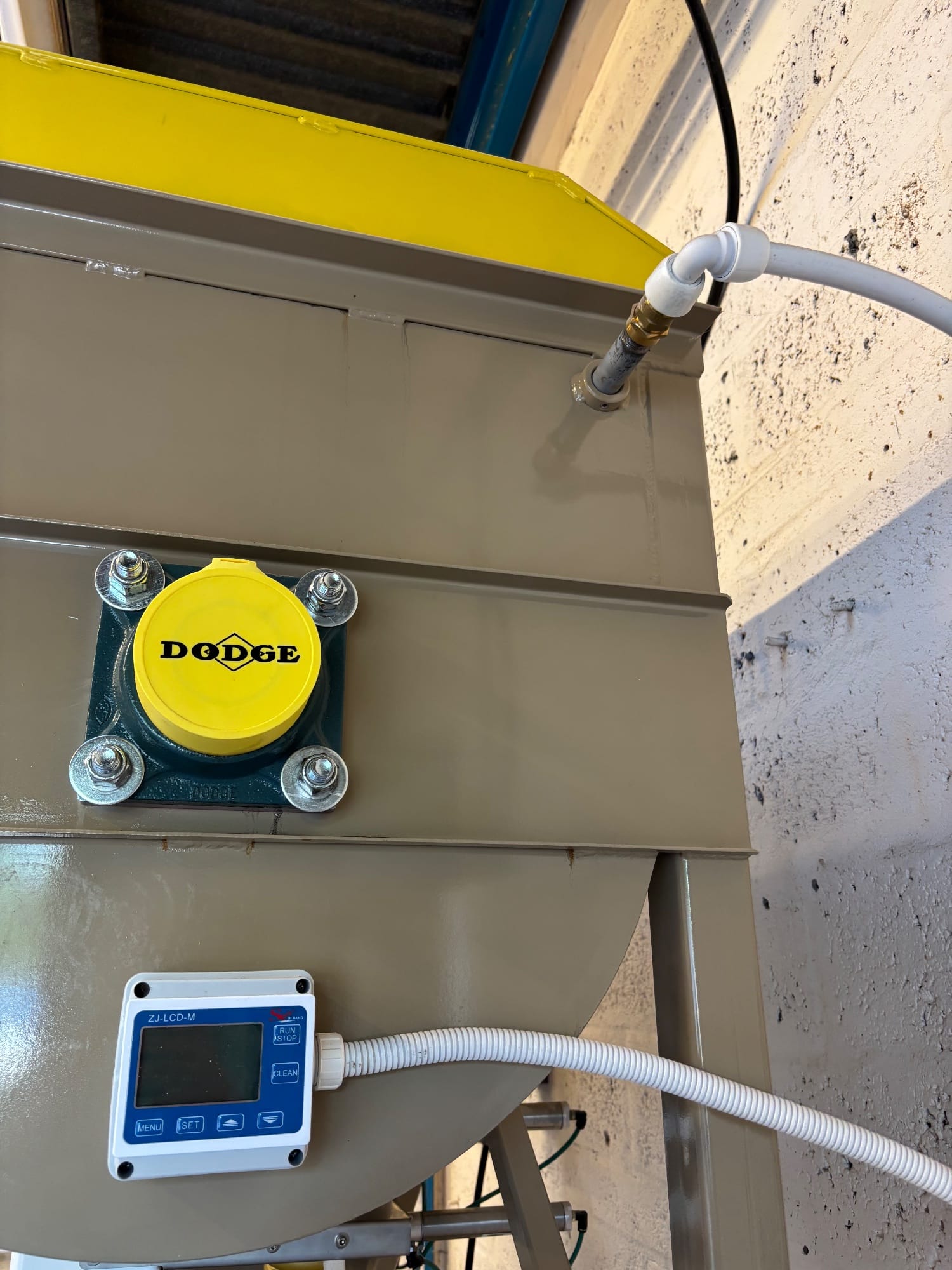

- Digital flow meter with run/stop, spray bar in hopper, 13 A plug
- Guarding

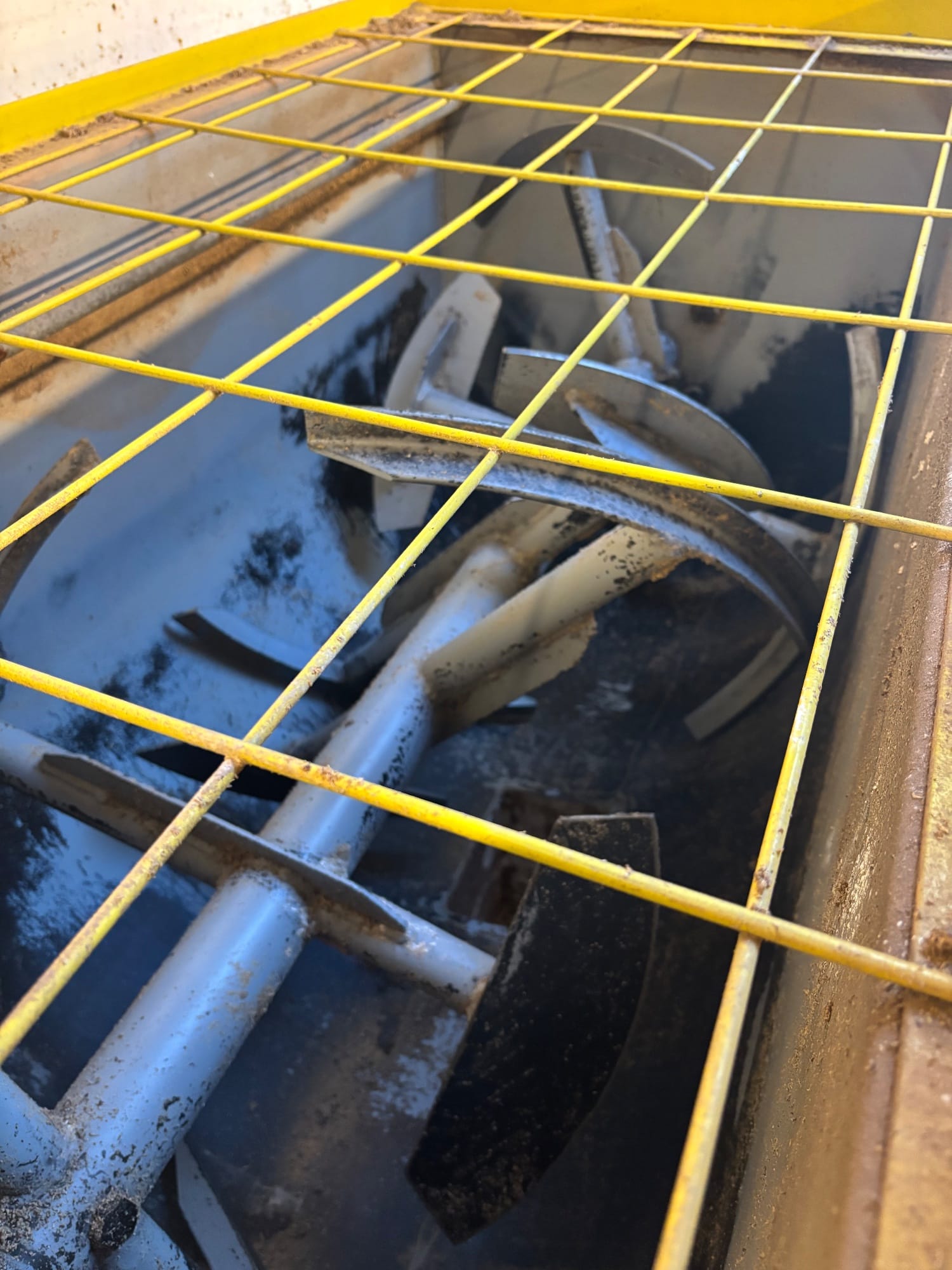

- Welded steel mesh over the hopper opening
- Condition
- Used, working, in daily service until the farm closed
What you get
- Mixer, frame and drive complete
- Control enclosure, isolator and 3-phase inlet lead

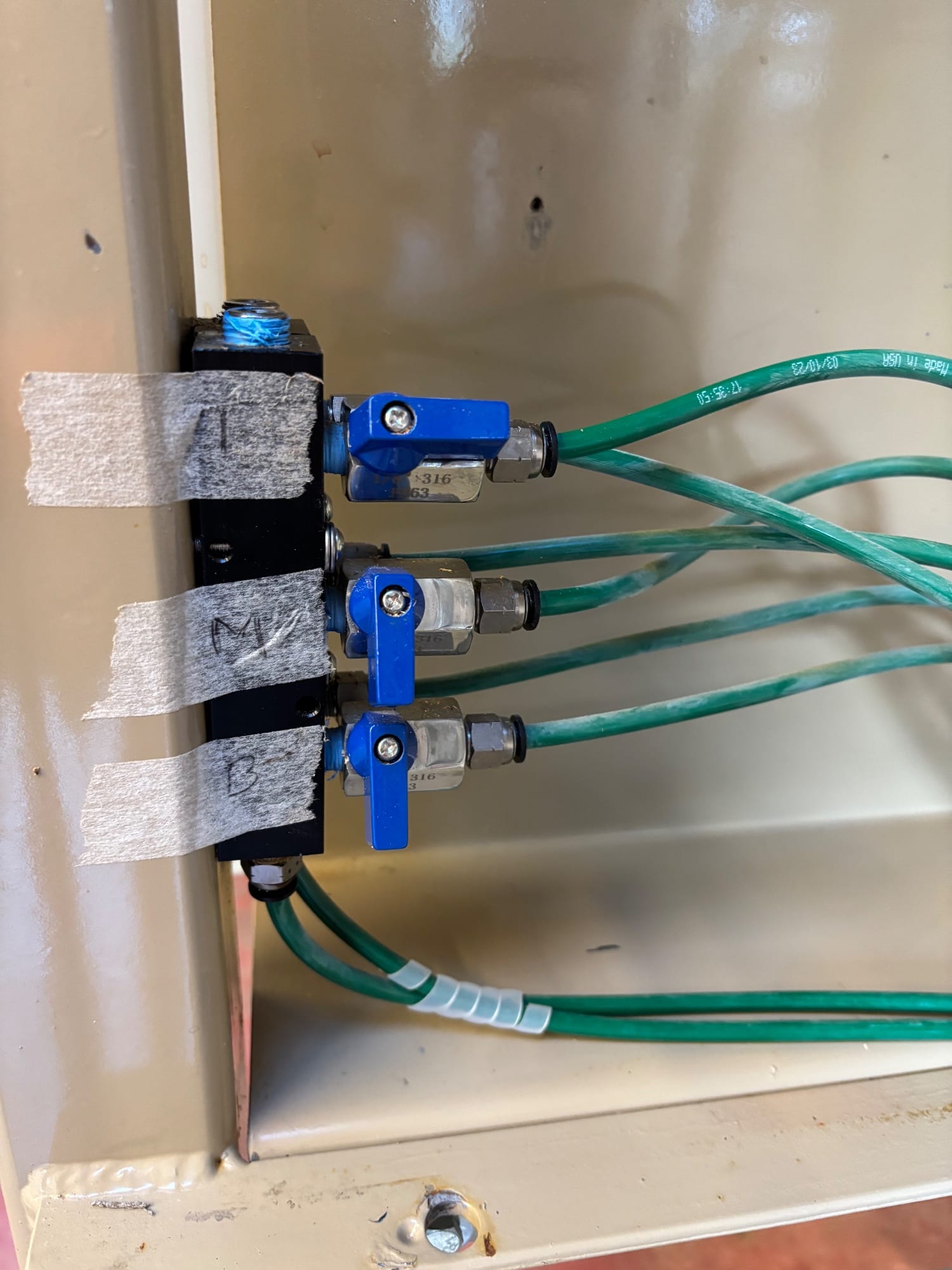

- Pneumatic manifold, foot pedal and air lines

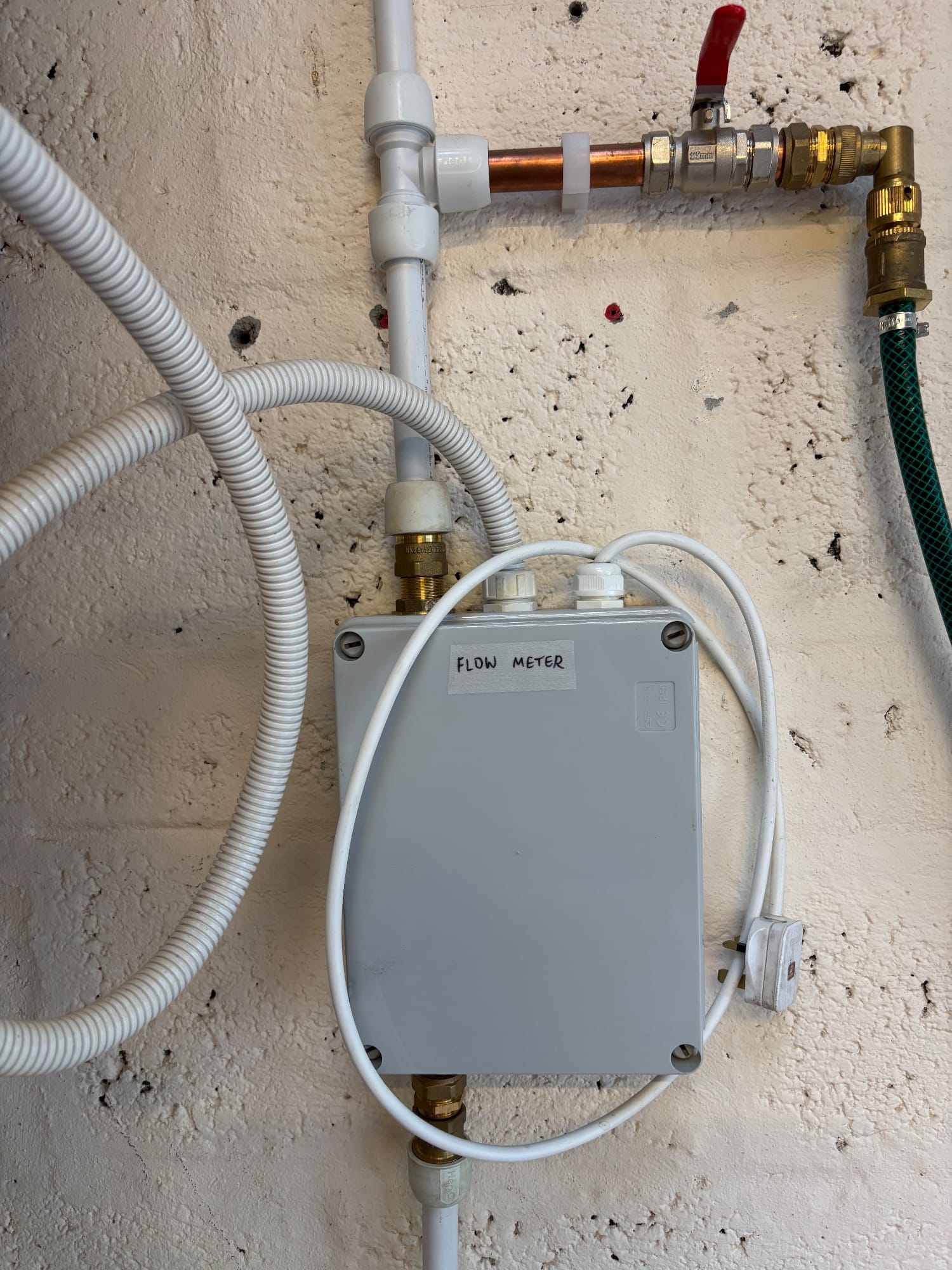

- Flow meter, controller, spray bar and water fittings
- Delivery to UK mainland
Not included
- Air compressor. Any small workshop compressor with a tank will do.
- Installation
Up close
Delivery
UK mainland delivery is included in the price. Collection welcome if you prefer.
Payment
Bank transfer against a VAT invoice. Price shown includes VAT at 20%.
Interested?
The farm has closed. Other equipment from the farm is also for sale.
